XT1708 Datasheet, converters equivalent, Silinktek

XT1708 Features

• Converters
• High Efficiency: 95％
• Input Voltage Range: 1.8V ~ 6.0V
• Output Current: 800mA
• Shutdown Current: <1uA
• Oscillation Frequency: 1.4MHz
<

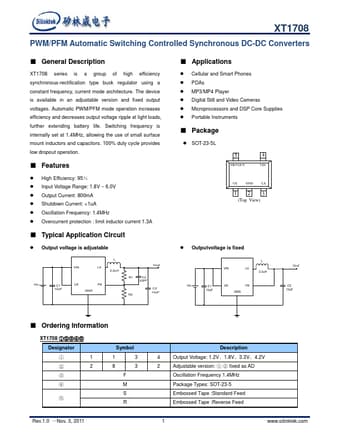

PDF File Details

Part number:

XT1708

Manufacturer:

Silinktek

File Size:

530.77kb

Download:

📄 Datasheet

Description:

Pwm/pfm automatic switching controlled synchronous dc-dc converters. XT1708 series is a group of high efficiency synchronous-rectification type buck regulator using a constant frequency, current mode a

XT1708 Application

• Applications
