XT1750

2MHz High-Brightness LED Drivers

XT1750 Features

* a 10% current ripple. These devices operate up to 2MHz switching frequency, thus allowing for small component size. The XT1750 operate over the -40°C to +125°C automotive temperature range and are available in 3mm x 3mm x 0.8mm, 6-pin TDFN packages.

* Typical Application Circuit VIN Rsense CIN

XT1750 General Description

The XT1750, step-down constant-current high-brightness LED (HB LED) drivers provide a cost-effective solution for automotive interior/exterior lighting, architectural and ambient lighting, LED bulbs such as MR16 and other LED illumination applications. The XT1750 operate from a 4.5V to 28V input vol.

XT1750 Datasheet (723.55 KB)

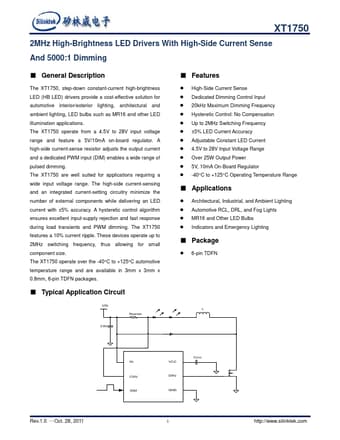

Preview of XT1750 PDF

Datasheet Details

Part number:

XT1750

Manufacturer:

Silinktek

File Size:

723.55 KB

Description:

2mhz high-brightness led drivers.
