XT2054 - Standalone Linear Li-Ion Battery Charger

XT2054 Description

XT2054 Standalone Linear Li-Ion Battery Charger with Thermal Regulation * General .
The XT2054 is a complete constant-current /constant -voltage linear charger for single cell lithium-ion batteries.

XT2054 Features

* include charge current monitor, under-voltage lockout, automatic recharge and a status pin to indicate charge termination and the presence of an input voltage.
* Features
* Programmable Charge Current Up to 500mA
* No MOSFET, Sense Resistor or Blocking Diode Required
* Complete Linea

XT2054 Applications

* Furthermore, the XT2054 is specifically designed to work within USB power specifications. No external sense resistor is needed, and no blocking diode is required due to the internal MOSFET architecture. Thermal feedback regulates the charge current to limit the die temperature during high power ope

📥 Download Datasheet

Preview of XT2054 PDF

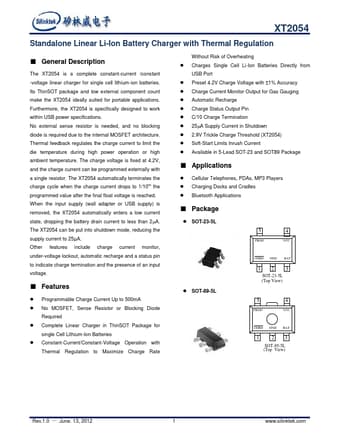

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XT2054
Manufacturer
Silinktek
File Size
495.03 KB
Datasheet
XT2054-Silinktek.pdf
Description
Standalone Linear Li-Ion Battery Charger
