XT2100 - Programmable Linear Constant Current LED Driver

XT2100 Description

Programmable Linear Constant Current LED Driver XT2100 * General .
XT2100 is a programmable constant current LED driver chip, which uses ultra-compact TSOT-23-5 to ensure that high-density packaging.

XT2100 Applications

* Comparison of program
* Application circuit 2 10k Dimming 1 2 3 1uF RSET1 RSET2 Flash on 5 LED 4 POWER 1uF Two IO port control DIMMING and FLASH Project The number of MCU or DSP IO Safety and suitability Circuit 1 One Using only one programming resistor, FLASH and LED lighting curr

📥 Download Datasheet

Preview of XT2100 PDF

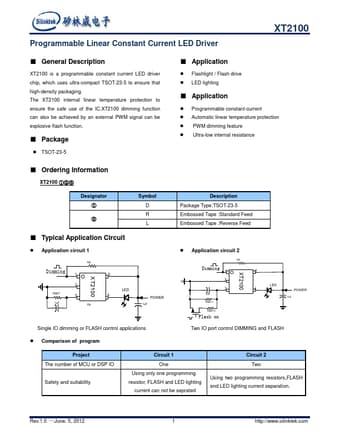

datasheet Preview Page 2 datasheet Preview Page 3
