XT2102

Three Function Programmable Constant Current Source

XT2102 General Description

XT2102 is a programmable constant current source, through an external resistor to set the output current. XT2102's internal control circuit that can achieve full current, 1 / 4 current and burst flash three functions. Three functions controlled by external switch cycle occurs. XT2102 built-in short .

XT2102 Datasheet (142.95 KB)

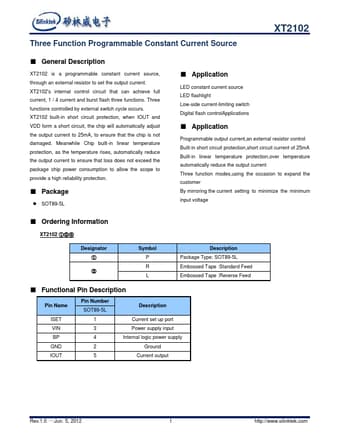

Preview of XT2102 PDF

Datasheet Details

Part number:

XT2102

Manufacturer:

Silinktek

File Size:

142.95 KB

Description:

Three function programmable constant current source.
