SC2262 - REMOTE CONTROL ENCODER

Datasheet Summary

Description

SC2262 is a remote control encoder paired with SC2272 utilizing CMOS Technology.

It encodes data and address pins into a serial coded waveform suitable for RF or IR modulation.

Features

  • CMOS Technology Low power consumption Very high noise immunity Up to 12 tri-state code address pins Up to 6 data pins Wide range of operating Voltage: 2.
  • 13 volts Single resistor oscillator Latch or momentary output type Available in DIP and SO package.

📥 Download Datasheet

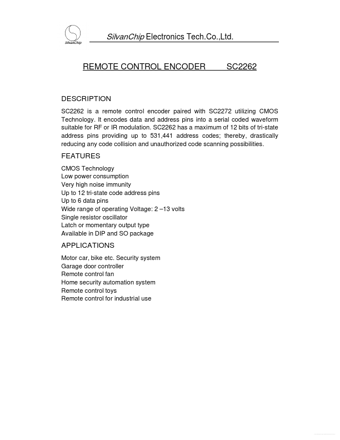

Datasheet preview – SC2262

Datasheet Details

Part number SC2262
Manufacturer SilvanChip
File Size 107.93 KB
Description REMOTE CONTROL ENCODER
Datasheet download datasheet SC2262 Datasheet
Additional preview pages of the SC2262 datasheet.

📁 Similar Datasheet

  • SC2262 - REMOTE CONTROL ENCODER (ETC)
  • SC2262 - REMOTE CONTROL ENCODER (HLF)
  • SC2262 - Encoder (ETC)
  • SC2260R4 - remote control encoder (SC)
  • SC2268 - REMOTE CONTROL ENCODER (Silan Microelectronics)
  • SC220 - XpressFlow 2020 Ethernet Routing Switch Chipset (Zarlink)
  • SC220 - Synchronous Step-Down Regulator (Semtech)
  • SC2200 - Thin Client On a Chip (National Semiconductor)
  • SC2200-01UTG - Unidirectional Discrete TVS Diode (Littelfuse)
  • SC2202 - High Sensitive Digital-Bipolar Hall Effect Sensor (Semiment)
Other Datasheets by SilvanChip

Full PDF Text Transcription

Click to expand full text
SilvanChip Electronics Tech.Co.,Ltd. REMOTE CONTROL ENCODER SC2262 DESCRIPTION SC2262 is a remote control encoder paired with SC2272 utilizing CMOS Technology. It encodes data and address pins into a serial coded waveform suitable for RF or IR modulation. SC2262 has a maximum of 12 bits of tri-state address pins providing up to 531,441 address codes; thereby, drastically reducing any code collision and unauthorized code scanning possibilities. FEATURES CMOS Technology Low power consumption Very high noise immunity Up to 12 tri-state code address pins Up to 6 data pins Wide range of operating Voltage: 2 – 13 volts Single resistor oscillator Latch or momentary output type Available in DIP and SO package APPLICATIONS Motor car, bike etc.
