STK14CA8 - 128Kx8 Autostore nvSRAM

Datasheet Summary

Description

The Simtek STK14CA8 is a 1Mb fast static RAM with a non-volatile Quantum Trap storage element included with each memory cell.

The SRAM provides the fast access & cycle times, ease of use and unlimited read & write endurance of a normal SRAM.

Features

  • 25, 35, 45 ns Read Access & R/W Cycle Time.
  • Unlimited Read/Write Endurance.
  • Automatic Non-volatile STORE on Power Loss.
  • Non-Volatile STORE Under Hardware or Software Control.
  • Automatic RECALL to SRAM on Power Up.
  • Unlimited RECALL Cycles.
  • 200K STORE Cycles.
  • 20-Year Non-volatile Data Retention.
  • Single 3 V + 20%, -10% Power Supply.
  • Commercial and Industrial Temperatures.
  • Small Footprint SOIC & SSOP P.

📥 Download Datasheet

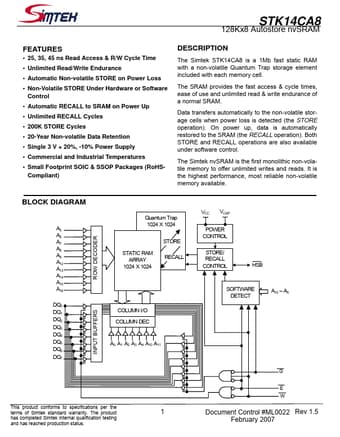

Datasheet preview – STK14CA8

Datasheet Details

Part number STK14CA8
Manufacturer Simtek
File Size 407.94 KB
Description 128Kx8 Autostore nvSRAM
Datasheet download datasheet STK14CA8 Datasheet
Additional preview pages of the STK14CA8 datasheet.

📁 Similar Datasheet

  • STK14C88 - 32 K x 8 AutoStore nvSRAM (Cypress Semiconductor)
  • STK103 - N-Channel MOSFET (SamHop Microelectronics)
  • STK1030 - AF Power Amplifier Output Stage (ETC)
  • STK1030 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1035 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1039 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1040 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1045 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1049 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1050 - (STKxxxx) Output Stage of AF Power Amp (ETC)
Other Datasheets by Simtek

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com 128Kx8 Autostore nvSRAM FEATURES • 25, 35, 45 ns Read Access & R/W Cycle Time • Unlimited Read/Write Endurance • Automatic Non-volatile STORE on Power Loss • Non-Volatile STORE Under Hardware or Software Control • Automatic RECALL to SRAM on Power Up • Unlimited RECALL Cycles • 200K STORE Cycles • 20-Year Non-volatile Data Retention • Single 3 V + 20%, -10% Power Supply • Commercial and Industrial Temperatures • Small Footprint SOIC & SSOP Packages (RoHSCompliant) STK14CA8 DESCRIPTION The Simtek STK14CA8 is a 1Mb fast static RAM with a non-volatile Quantum Trap storage element included with each memory cell. The SRAM provides the fast access & cycle times, ease of use and unlimited read & write endurance of a normal SRAM.
