SH67P33 Datasheet, Controller, Sino Wealth Microelectronic

SH67P33 Features

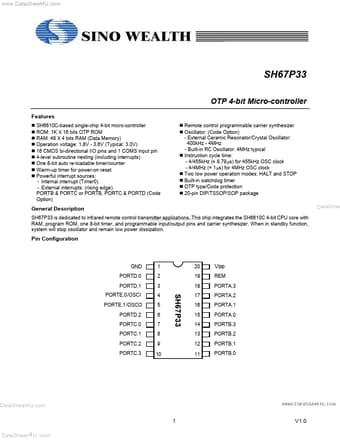

• Controller SH6610C-based single-chip 4-bit micro-controller ROM: 1K X 16 bits OTP ROM RAM: 48 X 4 bits RAM (Data Memory) Operation voltage: 1.8V - 3.6V (Typical: 3.0V) 16 CMOS bi-directional I/O p

PDF File Details

Part number:

SH67P33

Manufacturer:

Sino Wealth Microelectronic

File Size:

603.88kb

Download:

📄 Datasheet

Description:

Otp 4-bit micro controller. SH67P33 is dedicated to infrared remote control transmitter applications. This chip integrates the SH6610C 4-bit CPU core with DataSh

SH67P33 Application

• Applications This chip integrates the SH6610C 4-bit CPU core with DataSheet4U.com RAM, program ROM, one 8-bit timer, and programmable input/output
