SH67P54 - OTP 4-Bit Micro Controller

Product Overview

Sino Wealth Microelectronic

Datasheet Details

Part number	SH67P54
Manufacturer	Sino Wealth Microelectronic
File Size	860.99 KB
Description	OTP 4-Bit Micro Controller
Datasheet	SH67P54 Datasheet

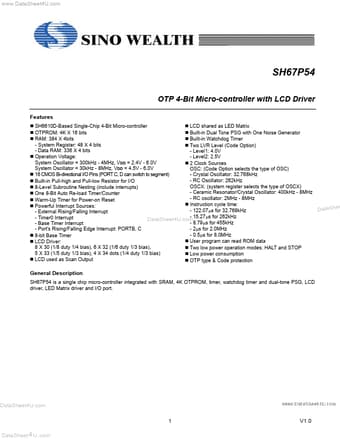

Additional preview pages of the SH67P54 datasheet.

Product details

Description

SH67P54 is a single chip micro-controller integrated with SRAM, 4K OTPROM, timer, watchdog timer and dual-tone PSG, LCD driver, LED Matrix driver and I/O port.

Features

LCD shared as LED Matrix SH6610D-Based Single-Chip 4-Bit Micro-controller Built-in Dual Tone PSG with One Noise Generator OTPROM: 4K X 16 bits Built-in Watchdog Timer RAM: 384 X 4bits - System Register: 48 X 4 bits Two LVR Level (Code Option) - Data RAM: 336 X 4 bits - Level1: 4.0V - Level2: 2.5V Operation Voltage: System Oscillator = 300kHz - 4MHz, VDD = 2.4V - 6.0V 2 Clock Sources System Oscillator = 30kHz - 8MHz, VDD = 4.5V - 6.0V OSC: (Code Option selects the type of OSC) - Crystal Oscillato.
