SH69P43 - OTP 4-Bit Microcontroller

Product Overview

Sino Wealth

📥 Download Datasheet

SH69P43 OTP 4-Bit Microcontroller by Sino Wealth - Datasheet Preview — Datasheet preview – SH69P43

Datasheet Details

Part number	SH69P43
Manufacturer	Sino Wealth
File Size	345.63 KB
Description	OTP 4-Bit Microcontroller
Datasheet	SH69P43 Datasheet

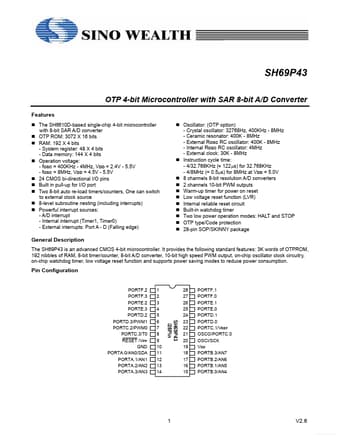

Additional preview pages of the SH69P43 datasheet.

Product details

Description

The SH69P43 is an advanced CMOS 4-bit microcontroller.

Features

The SH6610D-based single-chip 4-bit microcontroller with 8-bit SAR A/D converter.
OTP ROM: 3072 X 16 bits.
RAM: 192 X 4 bits - System register: 48 X 4 bits - Data memory: 144 X 4 bits.
Operation voltage: - fOSC = 400KHz - 4MHz, VDD = 2.4V - 5.5V - fOSC = 8MHz, VDD = 4.5V - 5.5V.
24 CMOS bi-directional I/O pins.
Built in pull-up for I/O port.
Two 8-bit auto re-load timers/counters, One can switch to external clock source.
8-.
