SM1401PSS Datasheet, Mosfet, Sinopower

SM1401PSS Features

  • Mosfet
  • -20V/-2.8A, RDS(ON)= 92mW (Max.) @ VGS=-4.5V RDS(ON)= 135mW (Max.) @ VGS=-2.5V RDS(ON)= 220mW (Max.) @ VGS=-1.8V
  • Super High Dense Cell Design
  • Reliable and

PDF File Details

Part number:

SM1401PSS

Manufacturer:

Sinopower

File Size:

254.30kb

Download:

📄 Datasheet

Description:

P-channel mosfet. D S G Top View of SC-70 D G S P-Channel MOSFET Ordering and Marking Information SM1401PS Assembly Material Handling Code Temperatu

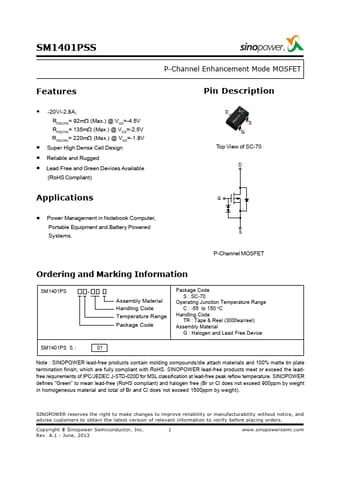

Datasheet Preview: SM1401PSS 📥 Download PDF (254.30kb)
Page 2 of SM1401PSS Page 3 of SM1401PSS

SM1401PSS Application

  • Applications
  • Power Management in Notebook Computer, Portable Equipment and Battery Powered Systems. Pin Description D S G Top View of SC-
