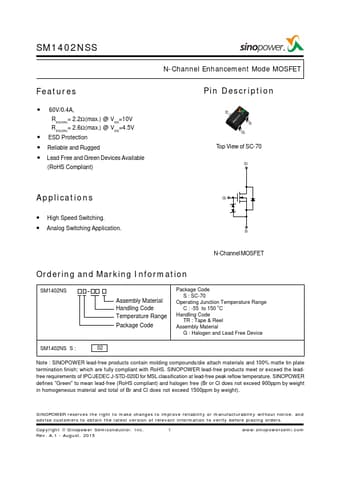

SM1402NSS Datasheet, Mosfet, Sinopower

SM1402NSS Features

• Mosfet
• 60V/0.4A, R= DS(ON) 2.2Ω(max.) @ V =10V GS RDS(ON)= 2.6Ω(max.) @ VGS=4.5V
• ESD Protection
• Reliable and Rugged
• Lead Free and Green Devices

PDF File Details

Part number:

SM1402NSS

Manufacturer:

Sinopower

File Size:

162.04kb

Download:

📄 Datasheet

Description:

N-channel mosfet. D S G Top View of SC-70 D Applications

High Speed Switching.

Analog Switching Application. G S N-Channel MOSFE

SM1402NSS Application

• Applications
• High Speed Switching.
• Analog Switching Application. G S N-Channel MOSFET Ordering and Marking Information SM140
