SM2001CSK Datasheet, Mosfet, Sinopower

SM2001CSK Features

  • Mosfet
  • N-Channel 20V/9.5A, RDS(ON) =14mW(max.) @ VGS = 4.5V RDS(ON) =18mW(max.) @ VGS = 2.5V
  • P-Channel -20V/-6A, RDS(ON) =45mW(max.) @ VGS =-4.5V RDS(ON) =65mW(max.) @ VGS

PDF File Details

Part number:

SM2001CSK

Manufacturer:

Sinopower

File Size:

312.36kb

Download:

📄 Datasheet

Description:

Dual mosfet. D1 D1 D2 D2 S1 G1 S2 G2 Top View of SOP-8 (8) (7) D1 D1 (6) (5) D2 D2 (2) (4) G1 G2 S1 S2 (1) (3) N-Channel MOSFET P-Channel MOSF

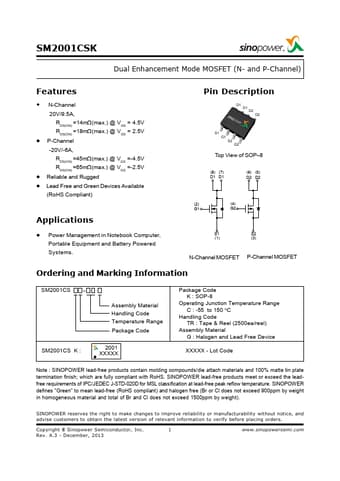

Datasheet Preview: SM2001CSK 📥 Download PDF (312.36kb)
Page 2 of SM2001CSK Page 3 of SM2001CSK

SM2001CSK Application

  • Applications
  • Power Management in Notebook Computer, Portable Equipment and Battery Powered Systems. Pin Description D1 D1 D2 D2 S1 G1 S2
