SM2004NSD Datasheet, Mosfet, Sinopower

SM2004NSD Features

  • Mosfet Pin Description
  • 20V/7A, RDS(ON)= 22mW(max.) @ VGS= 10V RDS(ON)= 28mW(max.) @ VGS= 4.5V RDS(ON)= 54mW(max.) @ VGS= 2.5V
  • 100% UIS and Rg tested
  • ESD Protect

PDF File Details

Part number:

SM2004NSD

Manufacturer:

Sinopower

File Size:

241.22kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

  • 20V/7A, RDS(ON)= 22mW(max.) @ VGS= 10V RDS(ON)= 28mW(max.) @ VGS= 4.5V RDS(ON)= 54mW(max.) @ VGS= 2.5V
  • 100% UIS

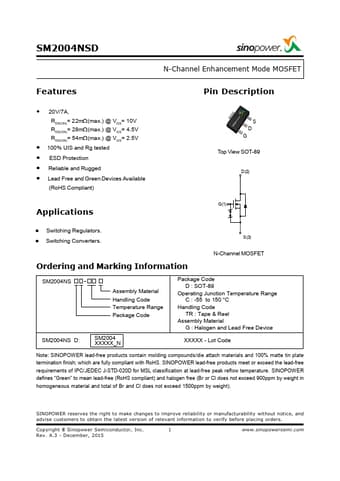

  • Datasheet Preview: SM2004NSD 📥 Download PDF (241.22kb)
    Page 2 of SM2004NSD Page 3 of SM2004NSD

    SM2004NSD Application

    • Applications G(1)
    • Switching Regulators.
    • Switching Converters. S (3) N-Channel MOSFET Ordering and Marking Information SM200
