SM3322NHQA - N-Channel MOSFET

Sinopower

📥 Download Datasheet

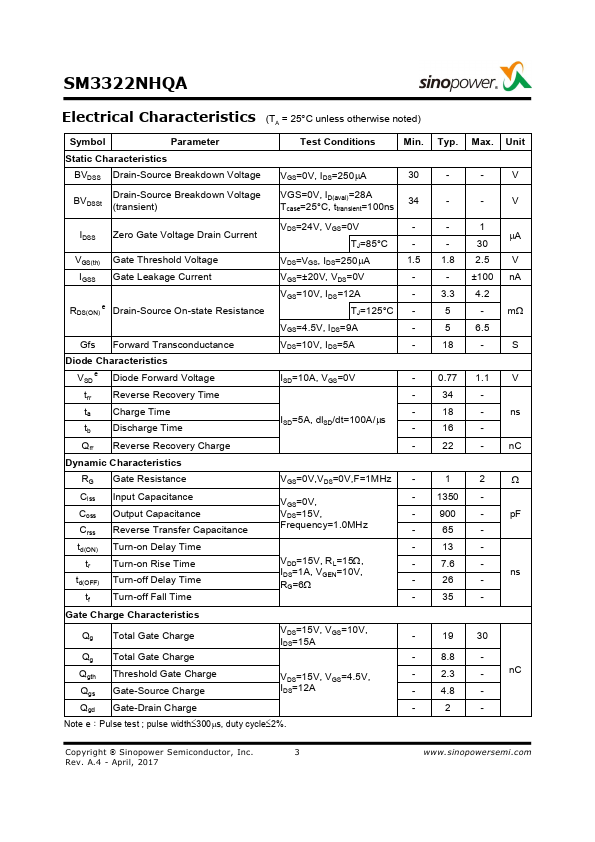

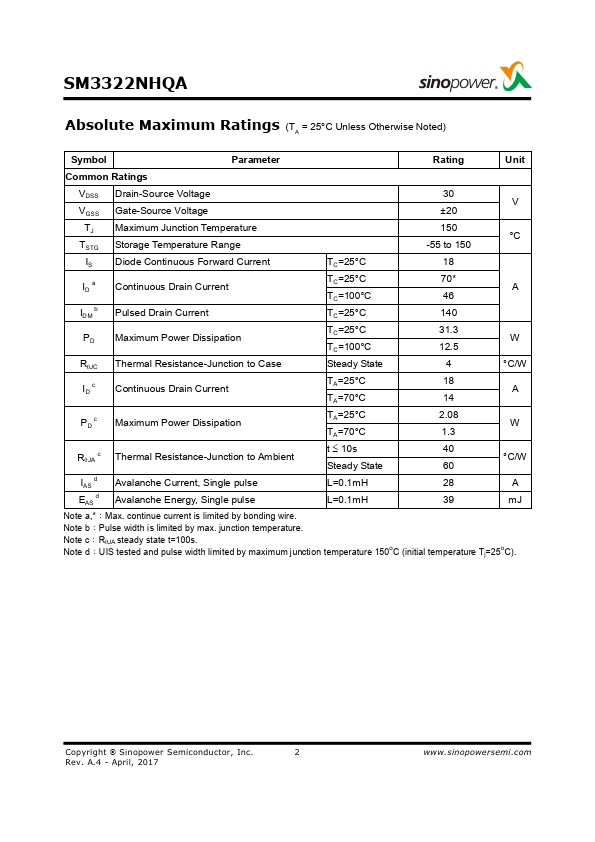

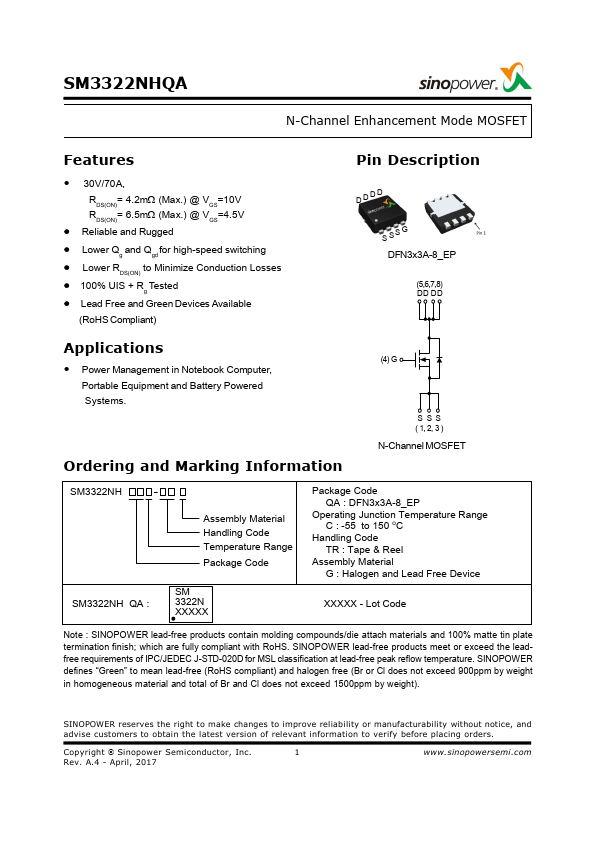

SM3322NHQA Datasheet Preview — Preview of SM3322NHQA PDF

Datasheet Details

Part number	SM3322NHQA
Manufacturer	Sinopower
File Size	247.11 KB
Description	N-Channel MOSFET
Datasheet	SM3322NHQA-Sinopower.pdf

SM3322NHQA Product details

Description

DDDD S SSG DFN3x3A-8_EP (5,6,7,8) DD DD Applications Power Management in Notebook Computer, Portable Equipment and Battery Powered Systems.Ordering and Marking Information (4) G SSS ( 1, 2, 3 ) N-Channel MOSFET SM3322NH SM3322NH QA : Assembly Material Handling Code Temperature Range Package Code SM 3322N XXXXX Package Code QA : DFN3x3A-8_EP Operating Junction Temperature Range C : -55 to 150 oC Handling Code TR : Tape & Reel Assembly Material G : Halogen and Lead Free Device XXXXX -

Features

30V/70A, RDS(ON)= 4.2mW (Max. ) @ VGS=10V RDS(ON)= 6.5mW (Max. ) @ VGS=4.5V.
Reliable and Rugged.
Lower Qg and Qgd for high-speed switching.
Lower RDS(ON) to Minimize Conduction Losses.
100% UIS + Rg Tested.
Lead Free and Green Devices Available (RoHS Compliant) Pin.
