SM330 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

SM330 Description

DC COMPONENTS CO., LTD.R SM320 THRU SM360 RECTIFIER SPECIALISTS TECHNICAL SPECIFICATIONS OF SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE RANGE.

SM330 Features

* High current capability

SM330 Applications

* Low leakage current for high efficiency SM-1(DO-213AB) MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Terminals: Solder plated solderable per MIL-STD-202E, Method 208 guaranteed
* Polarity: Color band denotes cathode end
* Mounting position

📥 Download Datasheet

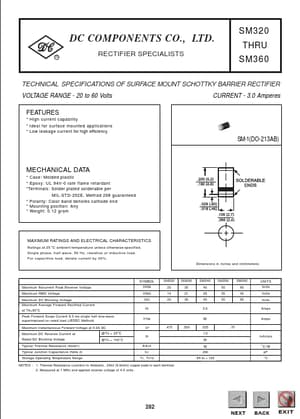

Preview of SM330 PDF
datasheet Preview Page 2

Datasheet Details

Part number
SM330
Manufacturer
Dc Components
File Size
389.91 KB
Datasheet
SM330_DcComponents.pdf
Description
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
