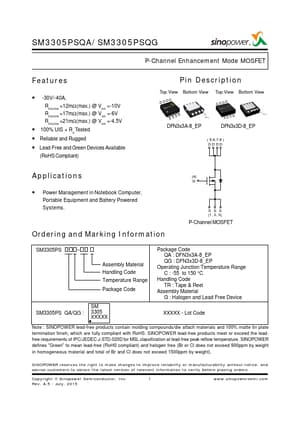

SM3305PSQA Datasheet, Mosfet, Sinopower

SM3305PSQA Features

• Mosfet
• -30V/-40A, RDS(ON) =12mΩ(max.) @ VGS =-10V RDS(ON) =17mΩ(max.) @ VGS =-6V R DS(ON) =21mΩ(max.) @ V GS =-4.5V
• 100% UIS + Rg Tested
• Reliable and Ru

PDF File Details

Part number:

SM3305PSQA

Manufacturer:

Sinopower

File Size:

169.57kb

Download:

📄 Datasheet

Description:

P-channel mosfet. Top View Bottom View D DDD Top View Bottom View DDDD S SSG DFN3x3A-8_EP SSSG DFN3x3D-8_EP ( 5,6,7,8 ) DD DD Applications <

SM3305PSQA Application

• Applications
• Power Management in Notebook Computer, Portable Equipment and Battery Powered Systems. Ordering and Marking Information (4)
