SM3307PSQG, SM3307PSQA - P-Channel MOSFET

SM3307PSQG Description

SM3307PSQA/SM3307PSQG ® P-Channel Enhancement Mode MOSFET .
Top View Bottom View DDDD Top View Bottom View DDDD SSSG DFN3x3-8(punch type) SSSG DFN3x3-8(saw type) ( 5,6,7,8 ) DD DD Applications. Power.

SM3307PSQG Features

* -30V/-33A, RDS(ON) =18mW(max. ) @ VGS =-10V RDS(ON) =30mW(max. ) @ VGS =-4.5V
* Reliable and Rugged

SM3307PSQG Applications

* Power Management in Notebook Computer, Portable Equipment and Battery Powered Systems. (4) G SSS (1, 2, 3) P-Channel MOSFET Ordering and Marking Information SM3307PS Assembly Material Handling Code Temperature Range Package Code SM3307PS QA/QG : SM 3307 XXXXX Package Code QA : DFN3x3-8

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SM3307PSQG, SM3307PSQA. Please refer to the document for exact specifications by model.

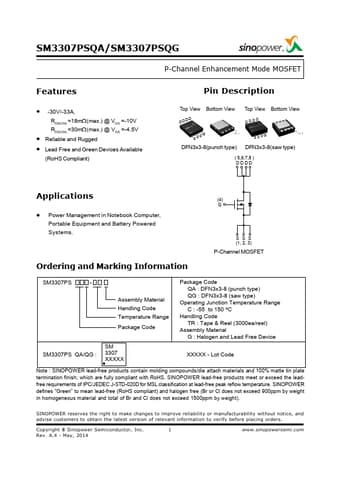

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SM3307PSQG, SM3307PSQA
Manufacturer
Sinopower
File Size
312.06 KB
Datasheet
SM3307PSQA-Sinopower.pdf
Description
P-Channel MOSFET
Note
This datasheet PDF includes multiple part numbers: SM3307PSQG, SM3307PSQA.
Please refer to the document for exact specifications by model.
