SM3305PSQG Datasheet, MOSFET, Sinopower

SM3305PSQG Features

  • Mosfet
  • -30V/-40A, RDS(ON) =12mΩ(max.) @ VGS =-10V RDS(ON) =17mΩ(max.) @ VGS =-6V R DS(ON) =21mΩ(max.) @ V GS =-4.5V
  • 100% UIS + Rg Tested
  • Reliable and Ru

PDF File Details

Part number:

SM3305PSQG

Manufacturer:

Sinopower

File Size:

169.57kb

Download:

📄 Datasheet

Description:

P-channel mosfet. Top View Bottom View D DDD Top View Bottom View DDDD S SSG DFN3x3A-8_EP SSSG DFN3x3D-8_EP ( 5,6,7,8 ) DD DD Applications <

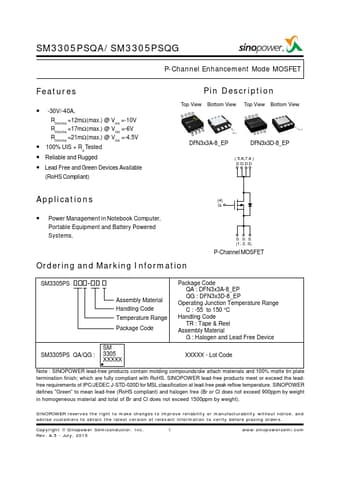

Datasheet Preview: SM3305PSQG 📥 Download PDF (169.57kb)
Page 2 of SM3305PSQG Page 3 of SM3305PSQG

SM3305PSQG Application

  • Applications
  • Power Management in Notebook Computer, Portable Equipment and Battery Powered Systems. Ordering and Marking Information (4)
