SM6A22NSFP, SM6A22NSF N-Channel MOSFET

Sinopower

Description

SM6A22NSF/SM6A22NSFP/ SM6A22NSU/SM6A22NSUB ® N-Channel Enhancement Mode MOSFET .
Applications. AC/DC Power Conversion in Switched Mode Power Supplies (SMPS). Uninterruptible Power Supply (UPS),. Adapter.

📥 Download Datasheet

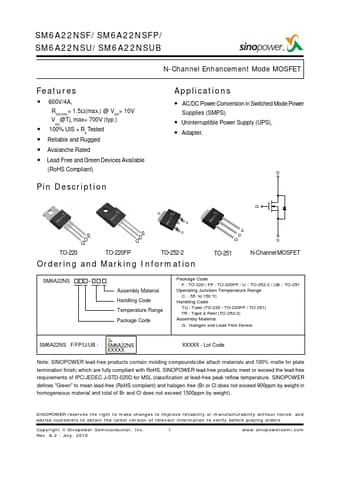

SM6A22NSFP Datasheet Preview — This datasheet PDF includes multiple part numbers: SM6A22NSFP, SM6A22NSF. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SM6A22NSFP, SM6A22NSF
Manufacturer: Sinopower
File Size: 194.98 KB
Datasheet: SM6A22NSF-Sinopower.pdf
Description: N-Channel MOSFET
Note: This datasheet PDF includes multiple part numbers: SM6A22NSFP, SM6A22NSF.
Please refer to the document for exact specifications by model.

Features

* 600V/4A, R= DS(ON) 1.5Ω(max. ) @ V= GS 10V V @Tj, max= 700V (typ. ) DS
* 100% UIS + Rg Tested
* Reliable and Rugged
* Avalanche Rated

Applications

* AC/DC Power Conversion in Switched Mode Power Supplies (SMPS).
* Uninterruptible Power Supply (UPS),
* Adapter. D D S S D G TO-220 S D G TO-220FP G TO-252-2 Ordering and Marking Information G S D G S TO-251 N-Channel MOSFET SM6A22NS Assembly Material Handling C
