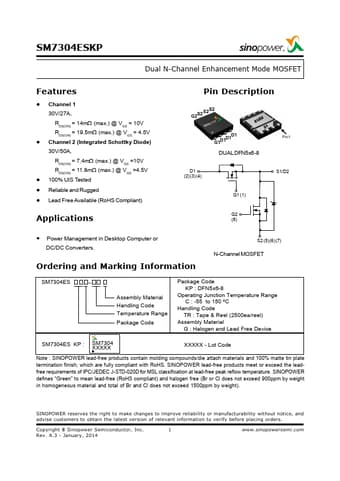

SM7304ESKP Datasheet, Mosfet, Sinopower

SM7304ESKP Features

• Mosfet
• Channel 1 30V/27A, RDS(ON) = 14mW (max.) @ VGS = 10V RDS(ON) = 19.5mW (max.) @ VGS = 4.5V
• Channel 2 (Integrated Schottky Diode) 30V/50A, RDS(ON) = 7.4mW (max.) @ VGS

PDF File Details

Part number:

SM7304ESKP

Manufacturer:

Sinopower

File Size:

420.80kb

Download:

📄 Datasheet

Description:

Dual n-channel mosfet. G2S2 S2S2 G1D1D1D1 S1/D2 D1 DUAL DFN5x6-8 Pin1 D1 (2) (3) (4) S1/D2 G1 (1) G2 (8)

Power Management in Desktop Comp

SM7304ESKP Application

• Applications Pin Description G2S2 S2S2 G1D1D1D1 S1/D2 D1 DUAL DFN5x6-8 Pin1 D1 (2) (3) (4) S1/D2 G1 (1) G2 (8)
• Power Management
