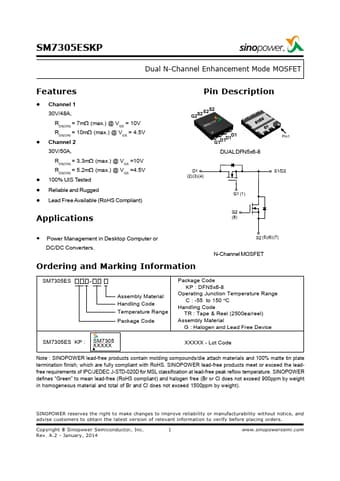

SM7305ESKP Datasheet, Mosfet, Sinopower

SM7305ESKP Features

• Mosfet
• Channel 1 30V/48A, RDS(ON) = 7mW (max.) @ VGS = 10V RDS(ON) = 10mW (max.) @ VGS = 4.5V
• Channel 2 30V/50A, RDS(ON) = 3.3mW (max.) @ VGS =10V RDS(ON) = 5.2mW (max.) @

PDF File Details

Part number:

SM7305ESKP

Manufacturer:

Sinopower

File Size:

350.80kb

Download:

📄 Datasheet

Description:

Dual n-channel mosfet. G2S2 S2S2 G1D1D1D1 S1/D2 D1 DUAL DFN5x6-8 Pin1 D1 (2) (3) (4) G1 (1) S1/D2 G2 (8)

Power Management in Desktop Comp

SM7305ESKP Application

• Applications Pin Description G2S2 S2S2 G1D1D1D1 S1/D2 D1 DUAL DFN5x6-8 Pin1 D1 (2) (3) (4) G1 (1) S1/D2 G2 (8)
• Power Management
