AS4041 Datasheet - Sipex Corporation

AS4041 Precision Micropower 1.24V Shunt Voltage Reference

The AS4041 is a two-terminal, temperature compensated, band-gap voltage reference, which provides a fixed 1.24V output for input currents between 500 µA to 5mA. The bandgap voltage (1.24V) is independently laser trimmed from the output voltage to achieve a very low tempco, then the output voltage is.

AS4041 Features

* APPLICATIONS

* Low temperature coefficient 50 ppm/°C

* Operating current range 100µA to 15 mA

* Low power, 250 mW @ IIN =100 mA

* Two terminal "Zener" operation www.DataSheet4U.com

* Small package: SOT - 23, TO-92, and SO-8

* Fixed reverse breakdown v

AS4041 Datasheet (151.48 KB)

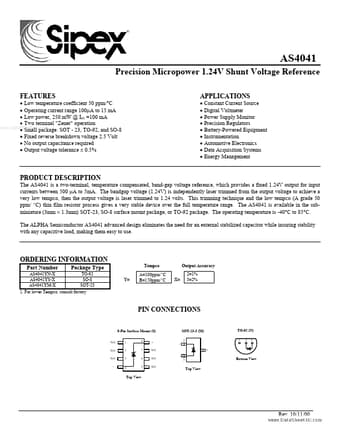

AS4041 Datasheet Preview — Preview of AS4041 PDF

Datasheet Details

Part number:

AS4041

Manufacturer:

Sipex Corporation

File Size:

151.48 KB

Description:

Precision micropower 1.24v shunt voltage reference.
