SP708 Low Power Microprocessor Supervisory Circuits

The SP705-708/813L/813M series is a family of microprocessor (µP) supervisory circuits that integrate myriad components involved in discrete solutions which monitor power-supply and battery in µP and digital systems. The SP705-708/813L/813M series will significantly improve system reliability and o.

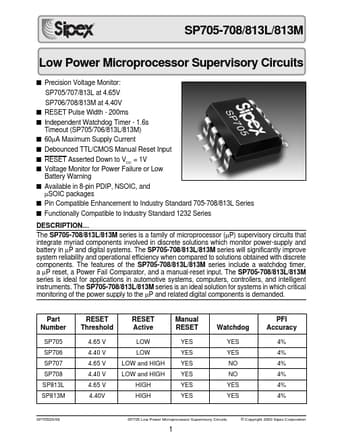

® SP705-708/813L/813M Low Power Microprocessor Supervisory Circuits s Precision Voltage Monitor: SP705/707/813L at 4.65V SP706/708/813M at 4.40V s RESET Pulse Width - 200ms s Independent Watchdog Timer - 1.6s Timeout (SP705/706/813L/813M) s 60µA Maximum Supply Current s Debounced TTL/CMOS Manual Reset Input s RESET Asserted Down to VCC = 1V s Voltage Monitor for Power Failure or Low Battery Warning s Available in 8-pin PDIP, NSOIC, and µSOIC packages s Pin Compatible Enhancement to Industry Sta.

SP708 Features

* of the SP705-708/813L/813M series include a watchdog timer, a µP reset, a Power Fail Comparator, and a manual-reset input. The SP705-708/813L/813M series is ideal for applications in automotive systems, computers, controllers, and intelligent instruments. The SP705-708/813L/813M series is an ideal s
