H9118

18V/2A 800KHz 0.8V/VFB COT BUCK

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor LEMO connectors DCH.91.181.PA TOOL SPANNER FOR NOTCHED NUT DigiKey 14 1 units
$11.3

H9118 Datasheet (703.79 KB)

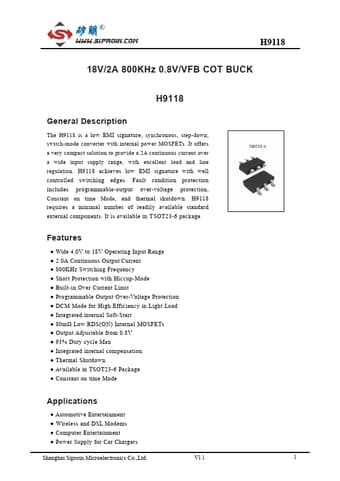

Preview of H9118 PDF Datasheet

Datasheet Details

Part number:

H9118

Manufacturer:

Siproin

File Size:

703.79 KB

Description:

18v/2a 800khz 0.8v/vfb cot buck

H9118 Features

* Wide 4.0V to 18V Operating Input Range

* 2.0A Continuous Output Current

* 800KHz Switching Frequency

* Short Protection with Hiccup-Mode

* Built-in Over Current Limit

* Programmable Output Over-Voltage Protection

* DCM Mode for High Efficiency in Light Load

* Integr

H9118 General Description

The H9118 is a low EMI signature, synchronous, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to provide a 2A continuous current over a wide input supply range, with excellent load and line regulation. H9118 achieves low EMI signature with well contro.
