MUR60100, MUR6080 Datasheet - Sirectifier Semiconductors

MUR60100 - Ultra Fast Recovery Diodes

MUR6080, MUR60100 Ultra Fast Recovery Diodes Dimensions TO-247AC A C(TAB) C www.DataSheet4U.com Dim.

A B C D E F G H J K L M N C Millimeter Min.

Max.

19.81 20.32 20.80 21.46 15.75 16.26 3.55 3.65 4.32 5.4 1.65 1.0 10.8 4.7 0.4 1.5 5.49 6.2 2.13 4.5 1.4 11.0 5.3 0.8 2.49 Inches Min.

Max.

0.780 0.819 0.610 0.140 0.170 0.212 0.065 0.040 0.426 0.185 0.016 0.087 0.800 0.845 0.640 0.144 0.216 0.244 0.084 0.177 0.055 0.433 0.209 0.031 0.102 A A=Anode, C=Cathode, TAB=Cathode VRSM V 800 1000 VRRM V

MUR60100 Features

* International standard package JEDEC TO-247AC

* Planar passivatd chips

* Very short recovery time

* Extremely low switching losses

* Low IRM-values

* Soft recovery behaviour APPLICATIONS

* Antiparallel diode for high frequency switching devices

* Antisaturation dio

MUR6080_SirectifierSemiconductors.pdf

This datasheet PDF includes multiple part numbers: MUR60100, MUR6080. Please refer to the document for exact specifications by model.

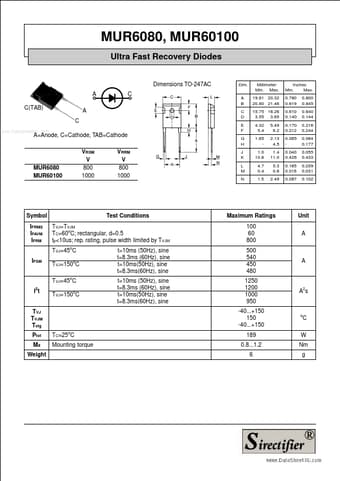

MUR60100 Datasheet Preview Page 2 MUR60100 Datasheet Preview Page 3

Datasheet Details

Part number:

MUR60100, MUR6080

Manufacturer:

Sirectifier Semiconductors

File Size:

159.44 KB

Description:

Ultra fast recovery diodes.

Note:

This datasheet PDF includes multiple part numbers: MUR60100, MUR6080.
Please refer to the document for exact specifications by model.
