GBJ606, GBJ6005, Single Phase Bridge Rectifiers

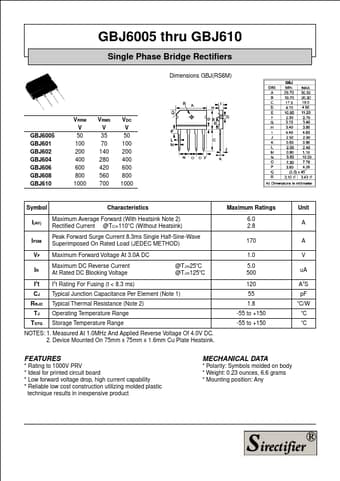

GBJ6005 thru GBJ610 Single Phase Bridge Rectifiers Dimensions GBJ(RS6M) GBJ6005 GBJ601 GBJ602 GBJ604 GBJ606 GBJ608 GBJ610 VRRM V 50 100 200 400 600 800 1000 VRMS V 35 70 140 280 420 560 700 VDC V 50 100 200 400 600 800 1000 Symbol Characteristics I(AV) Maximum Average Forward (With Heatsink Note 2) Rectified Current @TC=110oC (Without Heatsink) Peak Forward Surge Current 8.3ms Single Half-Sine-Wave IFSM Superimposed On Rated Load (JEDEC METHOD) VF Maximum Forward Voltage At 3.0A DC IR

GBJ606 Features

* Rating to 1000V PRV

* Ideal for printed circuit board

* Low forward voltage drop, high current capability

* Reliable low cost construction utilizing molded plastic technique results in inexpensive product MECHANICAL DATA

* Polarity: Symbols molded on body

* Weight: 0.23 ou
