GBJ10005 Datasheet - Sirectifier

GBJ10005 Single Phase Bridge Rectifiers

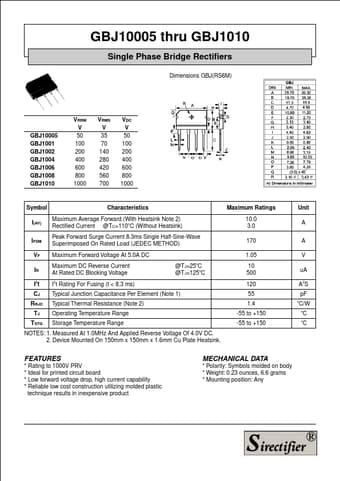

GBJ10005 thru GBJ1010 Single Phase Bridge Rectifiers Dimensions GBJ(RS6M) GBJ10005 GBJ1001 GBJ1002 GBJ1004 GBJ1006 GBJ1008 GBJ1010 VRRM V 50 100 200 400 600 800 1000 VRMS V 35 70 140 280 420 560 700 VDC V 50 100 200 400 600 800 1000 Symbol Characteristics Maximum Ratings I(AV) Maximum Average Forward (With Heatsink Note 2) Rectified Current @TC=110oC (Without Heatsink) 10.0 3.0 Peak Forward Surge Current 8.3ms Single Half-Sine-Wave IFSM Superimposed On Rated Load (JEDEC METHOD) 170 .

GBJ10005 Features

* Rating to 1000V PRV

* Ideal for printed circuit board

* Low forward voltage drop, high current capability

* Reliable low cost construction utilizing molded plastic technique results in inexpensive product MECHANICAL DATA

* Polarity: Symbols molded on body

* Weight: 0.23 ou
