GBJ15005 Datasheet - Sirectifier

GBJ15005 Single Phase Bridge Rectifiers

GBJ15005 thru GBJ1516 Single Phase Bridge Rectifiers Dimensions GBJ(RS6M) GBJ15005 GBJ1502 GBJ1504 GBJ1506 GBJ1508 GBJ1512 GBJ1516 VRRM V 50 200 400 600 800 1200 1600 VRMS V 35 140 280 420 560 840 1120 VDC V 50 200 400 600 800 1200 1600 Symbol Characteristics Maximum Ratings I(AV) Maximum Average Forward (With Heatsink Note 2) Rectified Current @TC=100oC (Without Heatsink) 15.0 3.2 IFSM Peak Forward Surge Current 8.3ms Single Half-Sine-Wave Superimposed On Rated Load (JEDEC METHOD) .

GBJ15005-sirectifier.pdf

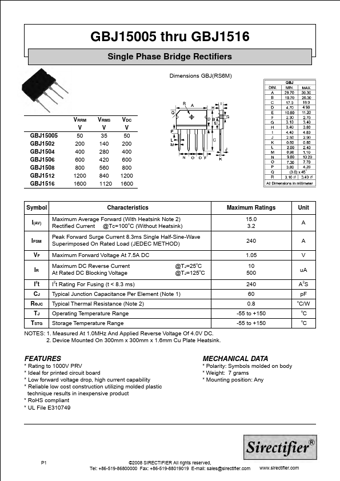

Preview of GBJ15005 PDF
GBJ15005 Datasheet Preview Page 2

Datasheet Details

Part number:

GBJ15005

Manufacturer:

Sirectifier

File Size:

110.99 KB

Description:

Single phase bridge rectifiers.
