MBR2040CT, MBR2030CT - Schottky Barrier Rectifiers

MBR2040CT Description

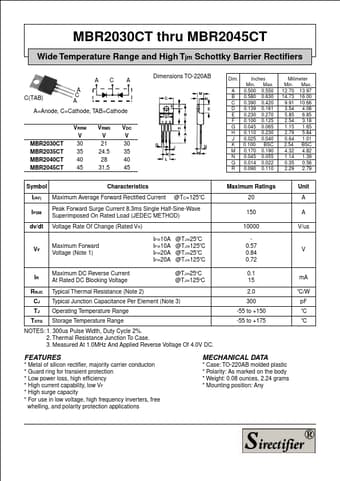

MBR2030CT thru MBR2045CT Wide Temperature Range and High Tjm Schottky Barrier Rectifiers C(TAB) AC A A C A A=Anode, C=Cathode, TAB=Cathode MBR2030.

MBR2040CT Features

* Metal of silicon rectifier, majority carrier conducton
* Guard ring for transient protection
* Low power loss, high efficiency
* High current capability, low VF
* High surge capacity
* For use in low voltage, high frequency inverters, free whelling, and polarity protection

MBR2040CT Applications

* MECHANICAL DATA
* Case: TO-220AB molded plastic
* Polarity: As marked on the body
* Weight: 0.08 ounces, 2.24 grams
* Mounting position: Any MBR2030CT thru MBR2045CT Wide Temperature Range and High Tjm Schottky Barrier Rectifiers AVERAGE FORWARD CURRENT AMPERES FIG.1 - FORWARD CU

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR2040CT, MBR2030CT. Please refer to the document for exact specifications by model.
datasheet Preview Page 2

Datasheet Details

Part number
MBR2040CT, MBR2030CT
Manufacturer
Sirectifier
File Size
97.42 KB
Datasheet
MBR2030CT-Sirectifier.pdf
Description
Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: MBR2040CT, MBR2030CT.
Please refer to the document for exact specifications by model.
