MBR2030CT Schottky Barrier Rectifiers

MBR2030CT thru MBR2045CT Wide Temperature Range and High Tjm Schottky Barrier Rectifiers C(TAB) AC A A C A A=Anode, C=Cathode, TAB=Cathode MBR2030CT MBR2035CT MBR2040CT MBR2045CT VRRM V 30 35 40 45 VRMS V 21 24.5 28 31.5 VDC V 30 35 40 45 Dimensions TO-220AB Dim. A B C D E F G H J K M N Q R Inches Min. Max. 0.500 0.550 0.580 0.630 0.390 0.420 0.139 0.161 0.230 0.270 0.100 0.125 0.045 0.065 0.110 0.230 0.025 0.040 0.100 BSC 0.170 0.190 0.045 0.055 0.014 0.022 0.090 0.110 Milimeter Min..

MBR2030CT Features

* Metal of silicon rectifier, majority carrier conducton

* Guard ring for transient protection

* Low power loss, high efficiency

* High current capability, low VF

* High surge capacity

* For use in low voltage, high frequency inverters, free whelling, and polarity protection

MBR2030CT-Sirectifier.pdf

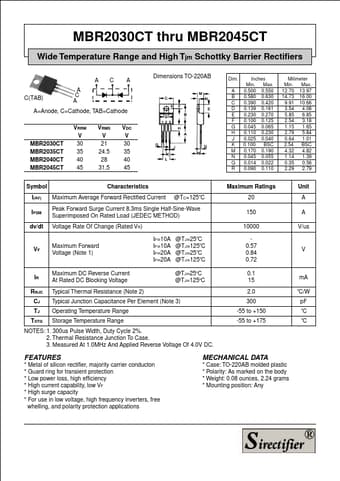

MBR2030CT Datasheet Preview — Preview of MBR2030CT PDF

Datasheet Details

Part number:

MBR2030CT

Manufacturer:

Sirectifier

File Size:

97.42 KB

Description:

Schottky barrier rectifiers.
