MBR2030CTL - Dual Schottky Power Rectifier

Product Overview

ON Semiconductor

📥 Download Datasheet

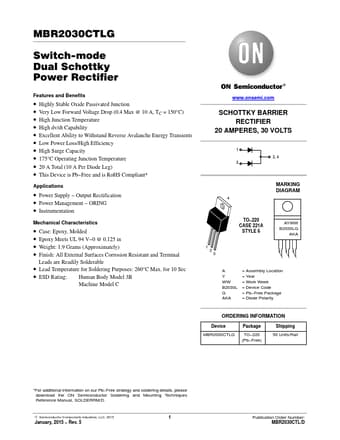

MBR2030CTL Dual Schottky Power Rectifier by ON Semiconductor - Datasheet Preview — Datasheet preview – MBR2030CTL

Datasheet Details

Part number	MBR2030CTL
Manufacturer	ON Semiconductor
File Size	237.55 KB
Description	Dual Schottky Power Rectifier
Datasheet	MBR2030CTL Datasheet
Additional preview pages of the MBR2030CTL datasheet.

Product details

Features

Highly Stable Oxide Passivated Junction.
Very Low Forward Voltage Drop (0.4 Max @ 10 A, TC = 150°C).
High Junction Temperature.
High dv/dt Capability.
Excellent Ability to Withstand Reverse Avalanche Energy Transients.
Low Power Loss/High Efficiency.
High Surge Capacity.
175°C Operating Junction Temperature.
20 A Total (10 A Per Diode Leg).
This Device is Pb.
Free and is RoHS Compliant.
Applicat.
