MBR20100CT, MBR2080CT Datasheet - ON Semiconductor

MBR20100CT, MBR2080CT, Power Rectifiers

MBR2080CT, MBR2090CT, MBR20100CT SWITCHMODE™ Power Rectifiers This series uses the Schottky Barrier principle with a platinum barrier metal.These sta.

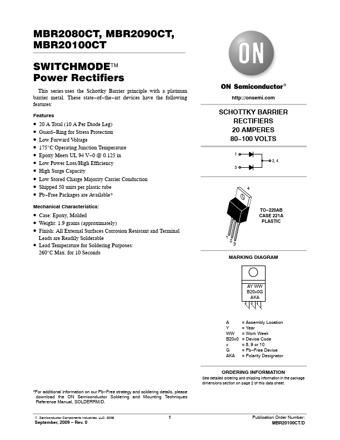

datasheet Preview Page 1 from Datasheet4u.com

MBR2080CT-ONSemiconductor.pdf

MBR20100CT Datasheet Preview — This datasheet PDF includes multiple part numbers: MBR20100CT, MBR2080CT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MBR20100CT, MBR2080CT

Manufacturer:

ON Semiconductor ↗

File Size:

119.15 KB

Description:

Power Rectifiers

Note:

This datasheet PDF includes multiple part numbers: MBR20100CT, MBR2080CT.
Please refer to the document for exact specifications by model.

Features

* Features
* 20 A Total (10 A Per Diode Leg)
* Guard
* Ring for Stress Protection
* Low Forward Voltage
* 175°C Operating Junction Temperature
* Epoxy Meets UL 94 V
* 0 @ 0.125 in
* Low Power Loss/High Efficiency
* High Surge Capacit

Applications

* and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended
