MBR20100CTG Datasheet, Rectifiers, ON Semiconductor

✔ MBR20100CTG Features

Features
20 A Total (10 A Per Diode Leg)
Guard
Ring for Stress Protection
Low Forward Voltage
175°C Operating Junction Temperature
Epoxy Meets UL 94 V
0 @ 0.12

PDF File Details

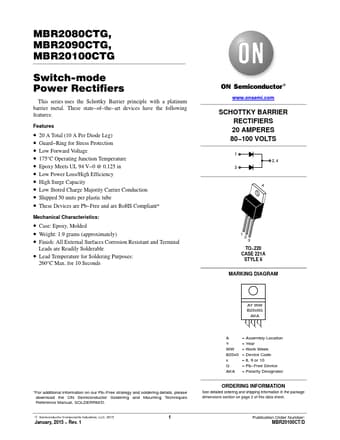

ON Semiconductor manufacturer logo and representative part image

Part number:

MBR20100CTG

Manufacturer:

ON Semiconductor ↗

File Size:

79.90kb

Download:

📄 Datasheet

Description:

Switch-mode power rectifiers.

📥 Download PDF (79.90kb)
