MBR20100CTG-1

Schottky Rectifier

MBR20100CTG-1 Features

* 150 °C TJ operation

* Center tap D2PAK and TO-262 packages

* Low forward voltage drop

* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance

* High frequency operation

* Guard ring enhanced rugged

MBR20100CTG-1 General Description

This center tap Schottky rectifier has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 150 °C junction temperature. Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse ba.

MBR20100CTG-1 Datasheet (119.00 KB)

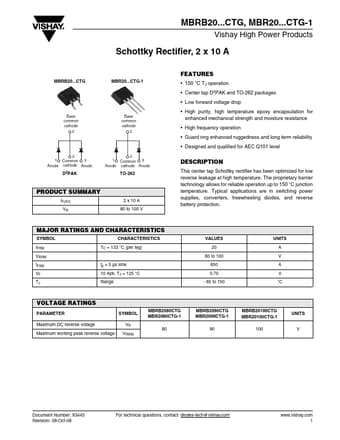

Preview of MBR20100CTG-1 PDF

Datasheet Details

Part number:

MBR20100CTG-1

Manufacturer:

Vishay ↗

File Size:

119.00 KB

Description:

Schottky rectifier.
MBRB20CTG, MBR20CTG-1 Vishay High Power Products Schottky Rectifier, 2 x 10 A MBRB20CTG MBR20CTG-1 Base common cathode 2 Base common cathode 2 2 .
