MBR20200CTG, MBR20200CT, Dual Schottky Rectifier

MBR20200CT Switch‐mode Power Rectifier Dual Schottky Rectifier .

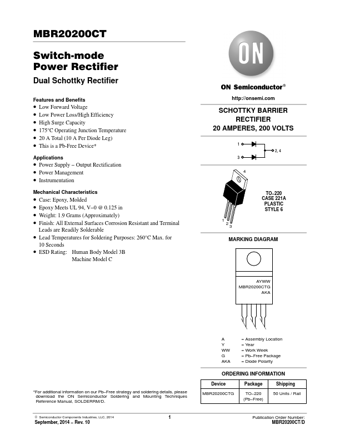

datasheet Preview Page 1 from Datasheet4u.com

MBR20200CT_ONSemiconductor.pdf

MBR20200CTG Datasheet Preview — This datasheet PDF includes multiple part numbers: MBR20200CTG, MBR20200CT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MBR20200CTG, MBR20200CT

Manufacturer:

ON Semiconductor ↗

File Size:

245.38 KB

Description:

Dual Schottky Rectifier

Note:

This datasheet PDF includes multiple part numbers: MBR20200CTG, MBR20200CT.
Please refer to the document for exact specifications by model.

Features

* Low Forward Voltage
* Low Power Loss/High Efficiency
* High Surge Capacity
* 175°C Operating Junction Temperature
* 20 A Total (10 A Per Diode Leg)
* This is a Pb-Free Device

Applications

* Power Supply
* Output Rectification
* Power Management
* Instrumentation Mechanical Characteristics
* Case: Epoxy, Molded
* Epoxy Meets UL 94, V
* 0 @ 0.125 in
* Weight: 1.9 Grams (Approximately)
* Finish: All External Surfaces
