MBR5200, MBR5150 Schottky Barrier Diodes

MBR5200 Description

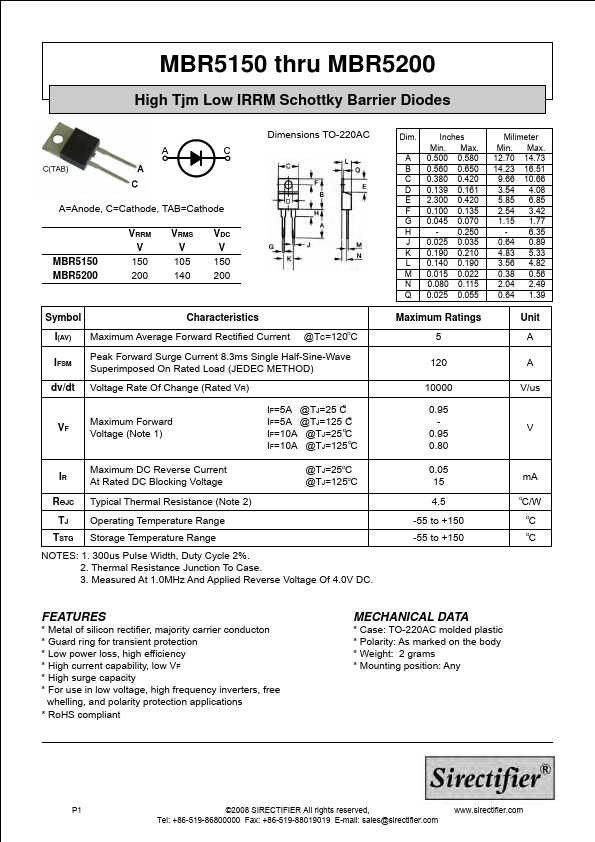

MBR5150 thru MBR5200 High Tjm Low IRRM Schottky Barrier Diodes A C C(TAB) AA CC A=Anode, C=Cathode, TAB=Cathode MBR5150 MBR5200 VRRM VRMS VD.

MBR5200 Features

* Metal of silicon rectifier, majority carrier conducton
* Guard ring for transient protection
* Low power loss, high efficiency
* High current capability, low VF
* High surge capacity
* For use in low voltage, high frequency inverters, free whelling, and polarity protection

MBR5200 Applications

* RoHS compliant MECHANICAL DATA
* Case: TO-220AC molded plastic
* Polarity: As marked on the body
* Weight: 2 grams
* Mounting position: Any P1 ©2008 SIRECTIFIER All rights reserved, www. sirectifier. com Tel: +86-519-86800000 Fax: +86-519-88019019 E-mail: sales@sirectifier. c

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR5200, MBR5150. Please refer to the document for exact specifications by model.

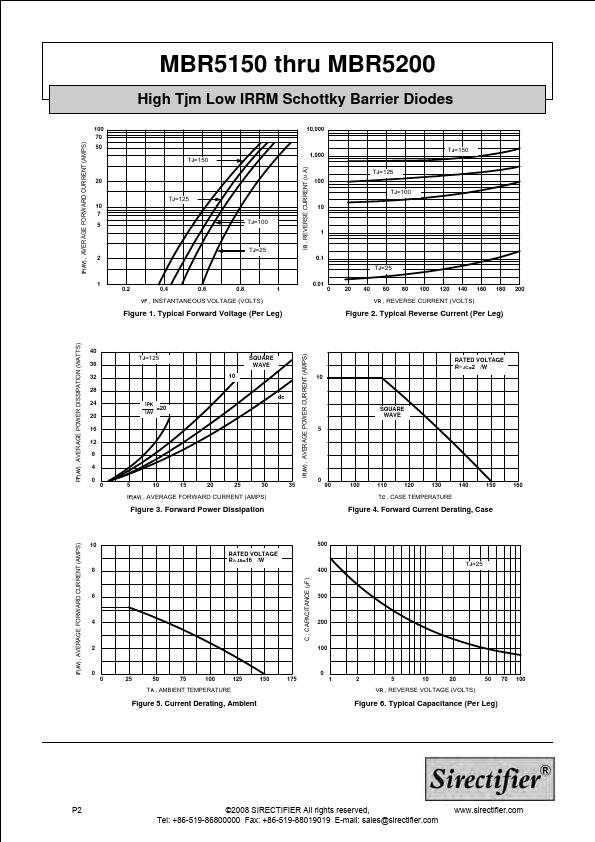

datasheet Preview Page 2

Datasheet Details

Part number
MBR5200, MBR5150
Manufacturer
Sirectifier
File Size
169.08 KB
Datasheet
MBR5150-Sirectifier.pdf
Description
Schottky Barrier Diodes
Note
This datasheet PDF includes multiple part numbers: MBR5200, MBR5150.
Please refer to the document for exact specifications by model.
