MBR10100, MBR1070 Datasheet - Sirectifier

MBR10100 Low IRRM Schottky Barrier Diodes

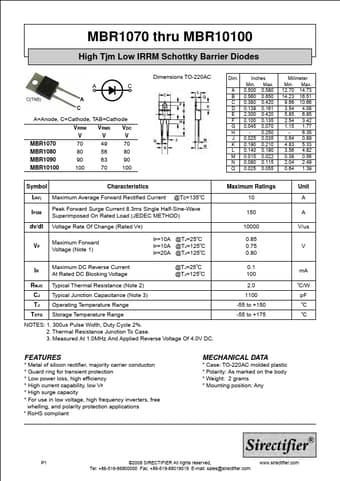

MBR1070 thru MBR10100 High Tjm Low IRRM Schottky Barrier Diodes AC C(TAB) AA CC A=Anode, C=Cathode, TAB=Cathode VRRM VRMS VDC V VV MBR1070 70 49 70 MBR1080 80 56 80 MBR1090 90 63 90 MBR10100 100 70 100 Dimensions TO-220AC Dim. A B C D E F G H J K L M N Q Inches Min. Max. 0.500 0.580 0.560 0.650 0.380 0.420 0.139 0.161 2.300 0.420 0.100 0.135 0.045 0.070 - 0.250 0.025 0.035 0.190 0.210 0.140 0.190 0.015 0.022 0.080 0.115 0.025 0.055 Milimeter Min. Max. 12.70 14.73 14.23 16.51 9.

MBR1070-Sirectifier.pdf

This datasheet PDF includes multiple part numbers: MBR10100, MBR1070. Please refer to the document for exact specifications by model.
MBR10100 Datasheet Preview Page 2

Datasheet Details

Part number:

MBR10100, MBR1070

Manufacturer:

Sirectifier

File Size:

117.70 KB

Description:

Low irrm schottky barrier diodes.

Note:

This datasheet PDF includes multiple part numbers: MBR10100, MBR1070.
Please refer to the document for exact specifications by model.
