MBR10100AJ3 - Schottky Barrier Rectifiers

Datasheet Summary

Features

  • VF.
  • Low VF and low IR type.
  • Low power loss, high efficiency.
  • High junction temperature capability.
  • RoHS compliant package.
  • High current capability.
  • Pb-free lead plating.
  • High surge capability.
  • Good tradeoff between leakage current and forward voltage drop Spec. No. : C457J3 Issued Date : 2012.01.11 Revised Date : 2019.02.14 Page No. : 1/6 10A 100V 175°C 0.67V Mechanical Data.
  • Case: TO-252 molded plastic.
  • Epoxy: UL 94V-0 rate flame ret.

📥 Download Datasheet

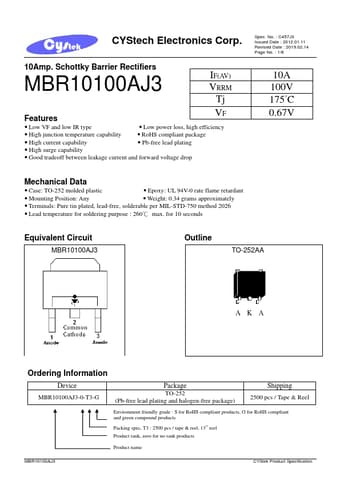

Datasheet preview – MBR10100AJ3
