MBR10100CR - Power Schottky Rectifier

This page provides the datasheet information for the MBR10100CR, a member of the MBR10100CT Power Schottky Rectifier family.

Datasheet Summary

Features

  • s -Plastic package has Underwriters Laboratory Flammability Classifications 94V-0 -High Junction Temperature Capability -Low forward voltage, high current capability -High surge capacity -Low power loss, high efficiency -ESD performance human body mode > 8 KV.

📥 Download Datasheet

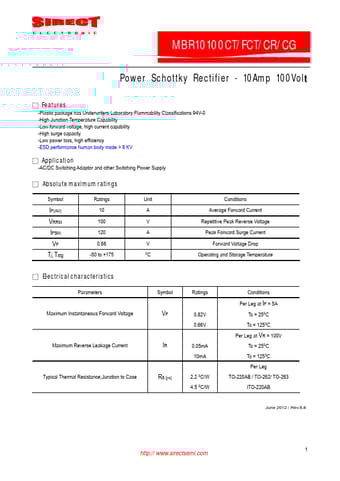

Datasheet preview – MBR10100CR

Datasheet Details

Part number MBR10100CR
Manufacturer SIRECT
File Size 137.03 KB
Description Power Schottky Rectifier
Datasheet download datasheet MBR10100CR Datasheet
Additional preview pages of the MBR10100CR datasheet.

📁 Similar Datasheet

  • MBR10100C - SCHOTTKY BARRIER RECTIFIER (UTC)
  • MBR10100C - HIGH VOLTAGE POWER SCHOTTKY RECTIFIER (Diodes Incorporated)
  • MBR10100CF - 10.0A SCHOTTKY BARRIER RECTIFIERS (WILLAS)
  • MBR10100CFSH - SCHOTTKY BARRIER RECTIFIER (Zowie Technology)
  • MBR10100CS - Schottky Barrier Rectifier (INCHANGE)
  • MBR10100CT - SCHOTTKY BARRIER RECTIFIER DIODE (EIC)
  • MBR10100CT - 10A Schottky Barrier Rectifier (TAITRON)
  • MBR10100CT - SCHOTTKY RECTIFIER (SANGDEST MICROELECTRONICS)
  • MBR10100CT - 10A High Power Schottky Barrier Rectifiers (CITC)
  • MBR10100CT - (MBR1070CT - MBR10100CT) HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
Other Datasheets by SIRECT

Full PDF Text Transcription

Click to expand full text
ELECTRONIC MBR10100CT/FCT/CR/CG Power Schottky Rectifier - 10Amp 100Volt □ Features -Plastic package has Underwriters Laboratory Flammability Classifications 94V-0 -High Junction Temperature Capability -Low forward voltage, high current capability -High surge capacity -Low power loss, high efficiency -ESD performance human body mode > 8 KV □ Application -AC/DC Switching Adaptor and other Switching Power Supply □ Absolute maximum ratings Symbol IF(AV) VRRM IFSM VF Tj, Tstg Ratings 10 100 120 0.
