MBR10100CT, MBR1090CT SCHOTTKY BARRIER RECTIFIER DIODE

MBR10100CT Description

Certificate : TH97/10561QM Certificate : TW00/17276EM MBR1090CT ~ MBR10100CT SCHOTTKY BARRIER RECTIFIER DIODES PRV : 90~100 Volts Io : 10 Amperes .

MBR10100CT Features

* :
* Guardring for overvoltage protection
* Low power loss, high efficiency
* Low forward voltage drop
* High forward surge capability
* High frequency operation
* Pb / RoHS Free MECHANICAL DATA :
* Case : TO-220AB Molded plastic
* Polarity : As marked on the body

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR10100CT, MBR1090CT. Please refer to the document for exact specifications by model.

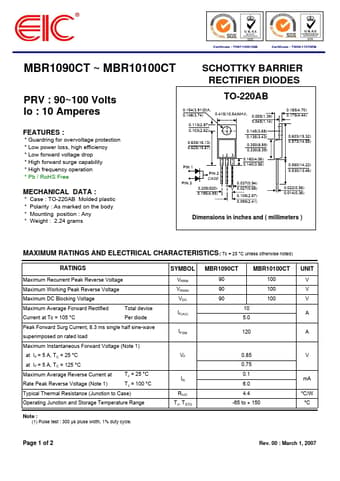

datasheet Preview Page 2

Datasheet Details

Part number
MBR10100CT, MBR1090CT
Manufacturer
EIC
File Size
122.47 KB
Datasheet
MBR1090CT-EIC.pdf
Description
SCHOTTKY BARRIER RECTIFIER DIODE
Note
This datasheet PDF includes multiple part numbers: MBR10100CT, MBR1090CT.
Please refer to the document for exact specifications by model.
