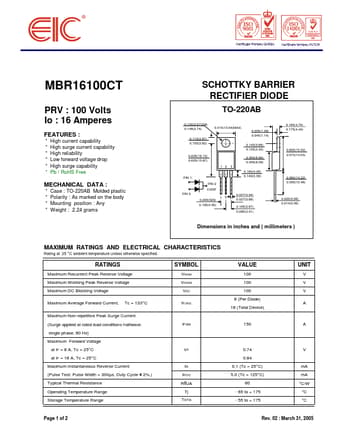

MBR16100CT
PRV : 100 Volts Io : 16 Amperes
FEATURES :
* High current capability * High surge current capability * High reliability * Low forward voltage drop * High surge capability * Pb / RoHS Free
MECHANICAL DATA :
* Case : TO-220AB Molded plastic * Polarity : As marked on the body * Mounting position : Any * Weight : 2.24 grams
SCHOTTKY BARRIER RECTIFIER DIODE
TO-220AB
0.154(3.91)DIA. 0.148(3.74)
0.113(2.87) 0.103(2.62)
0.415(10.54)MAX.
0.055(1.39) 0.045(1.14)
0.145(3.68) 0.135(3.43)
0.635(16.13) 0.625(15.87)
PIN 1
12 3
0.350(8.89) 0.330(8.39)
0.160(4.06) 0.140(3.56)
PIN 3
PIN 2 CASE
0.205(520) 0.195(4.95)
0.037(0.94) 0.027(0.68)
0.105(2.67) 0.095(2.41)
0.185(4.70) 0.175(4.44)
0.603(15.32) 0.573(14.55)
0.560(14.22) 0.530(13.46)
0.022(0.56) 0.014(0.
