MBR10100CT-E3, MBR1090CT-E3 Dual Common Cathode High Voltage Schottky Rectifier

MBR10100CT-E3 Description

www.vishay.com MBR1090CT-E3, MBR10100CT-E3 Vishay General Semiconductor Dual Common Cathode High Voltage Schottky Rectifier TMBS® TO-220AB PIN 1 P.

MBR10100CT-E3 Features

* Trench MOS Schottky technology
* Lower power losses, high efficiency
* Low forward voltage drop
* High forward surge capability
* High frequency operation
* Solder bath temperature 275 °C maximum, 10 s, per JESD 22-B106
* Material categorizat

MBR10100CT-E3 Applications

* For use in high frequency rectifier of switching mode power supplies, freewheeling diodes, DC/DC converters or polarity protection application MECHANICAL DATA Case: TO-220AB Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade Terminals: Matte tin plate

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR10100CT-E3, MBR1090CT-E3. Please refer to the document for exact specifications by model.

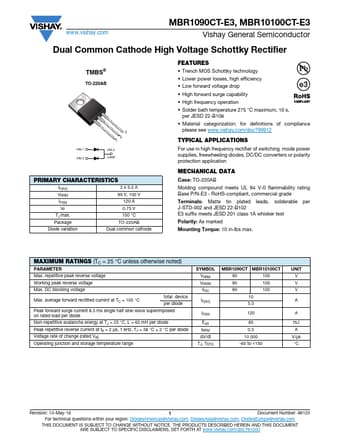

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR10100CT-E3, MBR1090CT-E3
Manufacturer
Vishay ↗
File Size
125.91 KB
Datasheet
MBR1090CT-E3-Vishay.pdf
Description
Dual Common Cathode High Voltage Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: MBR10100CT-E3, MBR1090CT-E3.
Please refer to the document for exact specifications by model.
