MBR10100CFSH - SCHOTTKY BARRIER RECTIFIER

Datasheet Summary

Features

  • Halogen-free type.
  • Compliance to RoHS produc.
  • Low power loss & high efficiency.
  • High surge capability.
  • 10 Amperes total (5 Amperes per diode leg).
  • High surge current capability.
  • Epitaxial construction.
  • Plastic Material-UL Recognition Flammability Classification 94V-0.

📥 Download Datasheet

Datasheet preview – MBR10100CFSH

Datasheet Details

Part number MBR10100CFSH
Manufacturer Zowie Technology
File Size 67.80 KB
Description SCHOTTKY BARRIER RECTIFIER
Datasheet download datasheet MBR10100CFSH Datasheet
Additional preview pages of the MBR10100CFSH datasheet.

📁 Similar Datasheet

  • MBR10100CF - 10.0A SCHOTTKY BARRIER RECTIFIERS (WILLAS)
  • MBR10100C - SCHOTTKY BARRIER RECTIFIER (UTC)
  • MBR10100C - HIGH VOLTAGE POWER SCHOTTKY RECTIFIER (Diodes Incorporated)
  • MBR10100C - Power Schottky Rectifier (SIRECT)
  • MBR10100CG - Power Schottky Rectifier (SIRECT)
  • MBR10100CR - Power Schottky Rectifier (SIRECT)
  • MBR10100CS - Schottky Barrier Rectifier (INCHANGE)
  • MBR10100CT - SCHOTTKY BARRIER RECTIFIER DIODE (EIC)
  • MBR10100CT - 10A Schottky Barrier Rectifier (TAITRON)
  • MBR10100CT - SCHOTTKY RECTIFIER (SANGDEST MICROELECTRONICS)
Other Datasheets by Zowie Technology

Full PDF Text Transcription

Click to expand full text

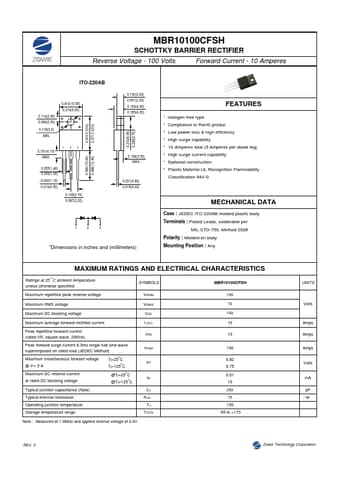

MBR10100CFSH SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 100 Volts Forward Current - 10 Amperes ITO-220AB 0.610(15.50) 0.571(14.50) 0.114(2.90) 0.098(2.50) 0.118(3.0) MIN. 0.413(10.50) 0.374(9.50) 0.161(4.10) MAX. 123 0.055(1.40) 0.039(1.00) 0.043(1.10) 0.019(0.50) 0.106(2.70) 0.087(2.20) 0.590(15.00) 0.488(12.40) 0.274(6.95) 0.226(5.75) 0.130(3.30) 0.091(2.30) 0.193(4.90) 0.165(4.20) 0.138(3.50) MAX. 0.031(0.80) 0.016(0.
