* Halogen-free type
* Compliance to RoHS produc
* Low power loss & high efficiency
* High surge capability
* 10 Amperes total (5 Amperes per diode leg)
* High surge current capability
* Epitaxial construction
* Plastic Material-UL Recognition Flammability Classificati

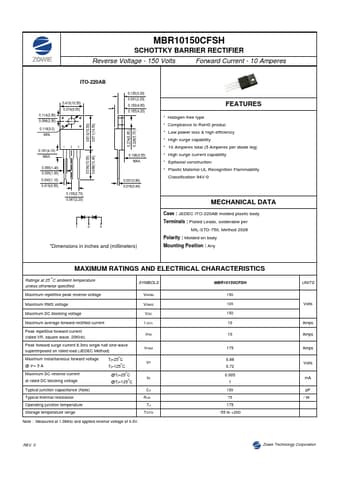

MBR10150CFSH Datasheet (68.38 KB)
MBR10150CFSH
Zowie Technology
68.38 KB
Schottky barrier rectifier.
MBR10150CFSH
SCHOTTKY BARRIER RECTIFIER
Reverse Voltage - 150 Volts
Forward Current - 10 Amperes
ITO-220AB
0.610(15.50) 0.571(14.50)
0.114(2.90).
