MBR10150C

HIGH VOLTAGE POWER SCHOTTKY RECTIFIER

MBR10150C Features

* High surge capacity

* Low Forward Voltage

* Guard-ring for stress protection

* SYMBOL DIODE

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free MBR10150CL-TA3-T MBR10150CG-TA3-T MBR10150CL-TF1-T MBR10150CG-TF1-T MBR10150CL-TF2-T MBR10150CG-TF2-T MBR10150CL

MBR10150C General Description

The UTC MBR10150C is a high voltage dual schottky rectifier, providing the designers with high current capacity and guard-ring for stress protection. The UTC MBR10150C is suitable for medium voltage operation and high frequency circuits where low switching losses and low noise are required
* FEA.

MBR10150C Datasheet (207.34 KB)

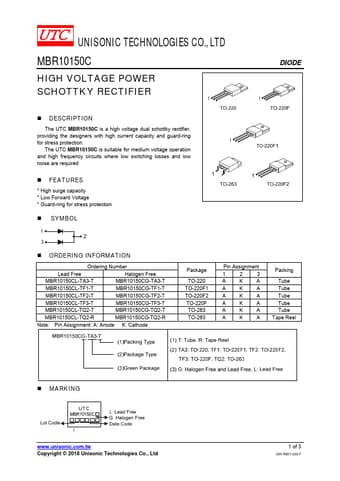

Preview of MBR10150C PDF

Datasheet Details

Part number:

MBR10150C

Manufacturer:

UTC

File Size:

207.34 KB

Description:

High voltage power schottky rectifier.
