MBR10150CTSH SCHOTTKY BARRIER RECTIFIER

MBR10150CTSH SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 150 Volts Forward Current - 10 Amperes TO-220AB 0.626(15.90) 0.547(13.90) 0.138(3.50) 0.098(2.50) 0.139(3.55) MIN. 0.420(10.68) 0.373(9.48) 0.177(4.50) MAX. 123 0.058(1.47) 0.042(1.07) 0.043(1.10) 0.019(0.50) 0.109(2.79) 0.090(2.29) 0.583(14.80) 0.480(12.20) 0.274(6.95) 0.226(5.75) 0.201(5.10) 0.138(3.50) 0.059(1.50) 0.043(1.10) 0.138(3.50) MAX. 0.026(0.65) 0.010(0.25) 123 Dimensions in inches and (millimeters) FEATUR.

MBR10150CTSH Features

* Halogen-free type

* Compliance to RoHS produc

* Low power loss & high efficiency

* High surge capability

* 10 Amperes total (5 Amperes per diode leg)

* High surge current capability

* Epitaxial construction

* Plastic Material-UL Recognition Flammability Classificati

MBR10150CTSH-ZowieTechnology.pdf

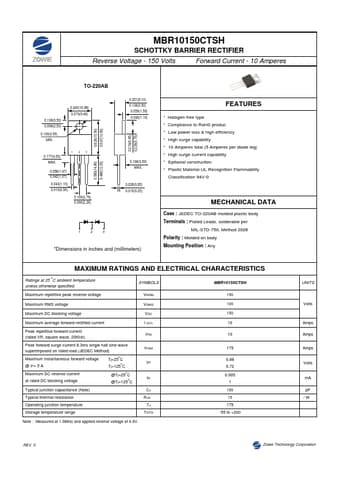

MBR10150CTSH Datasheet Preview — Preview of MBR10150CTSH PDF

Datasheet Details

Part number:

MBR10150CTSH

Manufacturer:

Zowie Technology

File Size:

70.20 KB

Description:

Schottky barrier rectifier.
