MBR10100CS - Schottky Barrier Rectifier

Datasheet Summary

Features

  • With TO-263 packaging.
  • High junction temperature capability.
  • Low forward voltage drop.
  • High current capability.
  • Low power loss, high efficiency.
  • Minimum Lot-to-Lot variations for robust device performance and reliable operation.

📥 Download Datasheet

Datasheet preview – MBR10100CS

Datasheet Details

Part number MBR10100CS
Manufacturer INCHANGE
File Size 235.21 KB
Description Schottky Barrier Rectifier
Datasheet download datasheet MBR10100CS Datasheet
Additional preview pages of the MBR10100CS datasheet.

📁 Similar Datasheet

  • MBR10100C - SCHOTTKY BARRIER RECTIFIER (UTC)
  • MBR10100C - HIGH VOLTAGE POWER SCHOTTKY RECTIFIER (Diodes Incorporated)
  • MBR10100C - Power Schottky Rectifier (SIRECT)
  • MBR10100CF - 10.0A SCHOTTKY BARRIER RECTIFIERS (WILLAS)
  • MBR10100CFSH - SCHOTTKY BARRIER RECTIFIER (Zowie Technology)
  • MBR10100CG - Power Schottky Rectifier (SIRECT)
  • MBR10100CR - Power Schottky Rectifier (SIRECT)
  • MBR10100CT - SCHOTTKY BARRIER RECTIFIER DIODE (EIC)
  • MBR10100CT - 10A Schottky Barrier Rectifier (TAITRON)
  • MBR10100CT - SCHOTTKY RECTIFIER (SANGDEST MICROELECTRONICS)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text

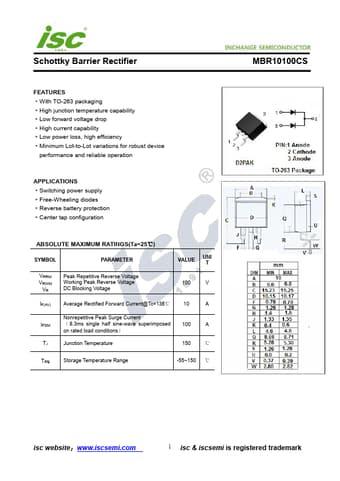

Schottky Barrier Rectifier FEATURES ·With TO-263 packaging ·High junction temperature capability ·Low forward voltage drop ·High current capability ·Low power loss, high efficiency ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Switching power supply ·Free-Wheeling diodes ·Reverse battery protection ·Center tap configuration ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNI T VRRM VRWM VR Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage 100 V IF(AV) Average Rectified Forward Current@Tc=136℃ 10 A Nonrepetitive Peak Surge Current IFSM （ 8.
