S510065

CATV OUT-OF- BAND- TUNER

S510065 Features

* • 3.3 V SINGLE SUPPLY OPERATION • LOW POWER CONSUMPTION (400 mW) • Low DISTORTION: -55dBc@ 1VPP • 82 dB TOTAL CONVERSION GAIN • 55 dB TOTAL GAIN CONTROL RANGE • LOW LO-RF LEAKAGE VDD 28,18 27,17 26,19 25, X 24,15 23,14 22,13 FUNCTIONAL DIAGRAM EPCOS X6959M SAW FILTER DESCRIPTION The S510065-55Z is

S510065 General Description

The S510065-55Z is a downconverter designed to be used as an Out-of-Band Tuner for use in CATV set-top box and Digital Cable Ready TV applications. The S510065-55Z consists of an input AGC amplifier, mixer, and a video/AGC amplifier. This device offers optimum performance with low power consumption .

S510065 Datasheet (172.77 KB)

Preview of S510065 PDF

Datasheet Details

Part number:

S510065

Manufacturer:

Sirenza Microdevices

File Size:

172.77 KB

Description:

Catv out-of- band- tuner.

📁 Related Datasheet

S510067 DTV IF AGC AMPLIFIER (Sirenza Microdevices)

S510 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Pan Jit International Inc.)

S5105 High Voltage Rectifier (Toshiba)

S510U 5.0AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (XINNUO)

S515B Surface Mount Schottky Barrier Rectifier (LINGXUN)

S515EWA 0.52 SINGLE DIGIT DISPLAYS (ETC)

S515U 5.0AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (XINNUO)

S51FH-YD03 Wide Plasma Display Module (Samsung)

S51RG5 5.0V 8 PIN DIP TRI-STATE CLOCK OSCILLATOR (Connor-Winfield)

S5-100U Connectable Devices (Siemens)

TAGS

S510065 CATV OUT-OF- BAND- TUNER Sirenza Microdevices

Image Gallery

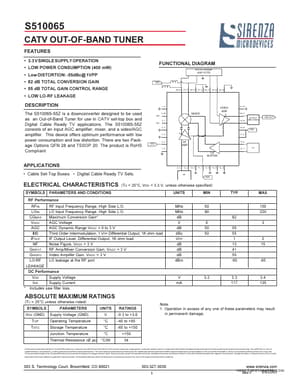

S510065 Datasheet Preview Page 2 S510065 Datasheet Preview Page 3
