S510067

DTV IF AGC AMPLIFIER

Sirenza Microdevices

S510067 Features

* SINGLE 3.3 V SUPPLY OPERATION Low DISTORTION: -55dBC@1VPP 14-68 dB TOTAL VOLTAGE GAIN 54 dB TOTAL GAIN CONTROL RANGE 10-100 MHZ OPERATION S510067 FUNCTIONAL DIAGRAM DESCRIPTION The S510067 consists of an input Linear AGC amplifier and a video/AGC amplifier. The amplifiers are designed t

S510067 General Description

The S510067 consists of an input Linear AGC amplifier and a video/AGC amplifier. The amplifiers are designed to interface directly with saw filters and A/D converters The AGC is delayed between the two blocks for optimal NF and IM3 performance across the full AGC range. The final stage is capable of.

S510067 Datasheet (166.39 KB)

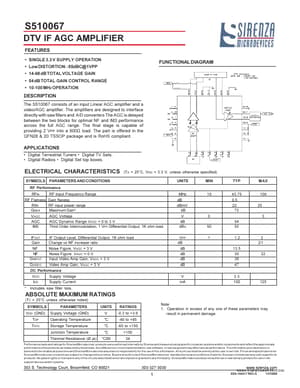

S510067 Datasheet Preview — Preview of S510067 PDF

Datasheet Details

Part number:

S510067

Manufacturer:

Sirenza Microdevices

File Size:

166.39 KB

Description:

Dtv if agc amplifier.
